Lab Report: CloudFormation Challenge — VPC + EC2 in Private Subnet

Lab Summary

A challenge lab: the manual lists the required components and the constraint (EC2 in a private subnet, no SSH access needed), but it does not dictate how to build the template. The full solution lives in one YAML file deployed via aws cloudformation create-stack.

Single Template

One YAML file declares 8 resources (VPC, IGW, attachment, subnet, route table, association, security group, EC2) plus 5 outputs.

Stack Region & Name

Deployed to us-west-2 as stack final-cfn-lab. Final status: CREATE_COMPLETE.

Private by Design

The EC2 launched with PublicIpAddress: None — proving the private subnet constraint is satisfied.

The CloudFormation Template

One YAML file describes the full stack. Each block below is explained by its purpose, not line by line — CloudFormation reads top to bottom and CloudFormation alone decides the order based on the dependency graph (!Ref, DependsOn).

task1.yaml YAML

AWSTemplateFormatVersion: '2010-09-09'
Description: CloudFormation template to create a VPC, internet gateway, private subnet, security group, and EC2 instance.

Parameters:
  LatestAmiId:
    Type: AWS::SSM::Parameter::Value<AWS::EC2::Image::Id>
    Default: /aws/service/ami-amazon-linux-latest/amzn2-ami-hvm-x86_64-gp2

Resources:
  LabVPC:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: 10.10.0.0/16
      EnableDnsSupport: true
      EnableDnsHostnames: true
      Tags:
        - Key: Name
          Value: LabVPC

  LabInternetGateway:
    Type: AWS::EC2::InternetGateway
    Properties:
      Tags:
        - Key: Name
          Value: LabInternetGateway

  AttachGateway:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      VpcId: !Ref LabVPC
      InternetGatewayId: !Ref LabInternetGateway

  PrivateSubnet:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref LabVPC
      CidrBlock: 10.10.1.0/24
      AvailabilityZone: !Select [0, !GetAZs '']
      MapPublicIpOnLaunch: false
      Tags:
        - Key: Name
          Value: PrivateSubnet

  PrivateRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref LabVPC
      Tags:
        - Key: Name
          Value: PrivateRouteTable

  PrivateSubnetRouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PrivateSubnet
      RouteTableId: !Ref PrivateRouteTable

  WebServerSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: Allow SSH access from anywhere
      VpcId: !Ref LabVPC
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: 22
          ToPort: 22
          CidrIp: 0.0.0.0/0
      Tags:
        - Key: Name
          Value: WebServerSecurityGroup

  PrivateEC2Instance:
    Type: AWS::EC2::Instance
    Properties:
      InstanceType: t3.micro
      ImageId: !Ref LatestAmiId
      SubnetId: !Ref PrivateSubnet
      SecurityGroupIds:
        - !Ref WebServerSecurityGroup
      Tags:
        - Key: Name
          Value: PrivateEC2Instance

Outputs:
  VPCId:
    Description: Created VPC ID
    Value: !Ref LabVPC
  InternetGatewayId:
    Description: Created internet gateway ID
    Value: !Ref LabInternetGateway
  PrivateSubnetId:
    Description: Created private subnet ID
    Value: !Ref PrivateSubnet
  SecurityGroupId:
    Description: Created security group ID
    Value: !Ref WebServerSecurityGroup
  EC2InstanceId:
    Description: Created EC2 instance ID
    Value: !Ref PrivateEC2Instance

How the template breaks down

Parameters → LatestAmiId

Uses the special type AWS::SSM::Parameter::Value<AWS::EC2::Image::Id> to read the latest Amazon Linux 2 AMI ID from SSM Parameter Store. This avoids hardcoding AMI IDs that change every few weeks and break the template across regions.

LabVPC

VPC with CIDR 10.10.0.0/16. EnableDnsHostnames: true is required so EC2 instances inside the VPC can receive DNS names — useful even when no public IP is assigned, since AWS internal services rely on internal DNS.

LabInternetGateway + AttachGateway

The IGW is declared as a standalone resource, then attached to the VPC through a separate AWS::EC2::VPCGatewayAttachment. This is the canonical pattern — declaring and attaching are two distinct CloudFormation resources, which lets you detach without deleting the gateway.

PrivateSubnet

CIDR 10.10.1.0/24 placed in the first AZ via !Select [0, !GetAZs ''] (portable across regions). MapPublicIpOnLaunch: false guarantees instances launched here do not get a public IP automatically — the first half of the "private" guarantee.

PrivateRouteTable + Association

An empty route table is created and associated with the subnet. Crucially, no route to the IGW is added. This is the second half of the "private" guarantee: even though the IGW exists in the VPC, this subnet's traffic has no path to it.

WebServerSecurityGroup

Allows inbound SSH (port 22) from 0.0.0.0/0. The lab guide requires this rule even though the EC2 cannot be reached from the internet (no public IP, no IGW route). The SG is created as the declared posture, not as an actual access path.

PrivateEC2Instance

t3.micro launched into PrivateSubnet with the SG attached. ImageId resolves through the SSM parameter — the user never sees the AMI ID, AWS substitutes the latest one at stack-create time.

Outputs

Five IDs exported: VPC, IGW, subnet, security group, and EC2 instance. These show up under Outputs in the console and can be referenced from other stacks via !ImportValue if exports were declared.

Why this is genuinely a private subnet: AWS classifies a subnet as private not by a checkbox but by its route table. The IGW exists and is attached to the VPC, but PrivateRouteTable has zero routes pointing to it. Therefore traffic from the EC2 cannot reach 0.0.0.0/0 through the gateway. Adding a route 0.0.0.0/0 → LabInternetGateway would instantly convert this into a public subnet.

Deploy from the AWS CLI

Everything runs from the terminal — no console clicks. Validation first, then create, then wait for completion before checking results.

Validate the template

Catch syntax errors before paying for any resource. validate-template parses the file and checks YAML well-formedness plus basic property names.

terminal CLI

aws cloudformation validate-template \
  --template-body file://task1.yaml

Create the stack

One command triggers the entire provisioning pipeline. CloudFormation returns the stack ARN immediately and works in the background.

terminal CLI

aws cloudformation create-stack \
  --stack-name final-cfn-lab \
  --template-body file://task1.yaml

Returned StackId:

output ARN

arn:aws:cloudformation:us-west-2:265659577547:stack/final-cfn-lab/cecf07c0-5056-11f1-b1f2-069c60ff0039

Wait until creation completes

wait blocks the terminal and polls every few seconds until the stack reaches a terminal state. Exits cleanly on CREATE_COMPLETE; exits with an error on any rollback state.

terminal CLI

aws cloudformation wait stack-create-complete \
  --stack-name final-cfn-lab

Final status: CREATE_COMPLETE

Verification of Resources

Two CLI queries to prove the stack delivered what the challenge asked for: all 8 resources created and the EC2 actually launched without a public IP. The --query flag uses JMESPath to project the relevant columns and --output table renders them readably in the terminal.

3.1 — List the stack resources

terminal CLI

aws cloudformation describe-stack-resources \
  --stack-name final-cfn-lab \
  --query 'StackResources[*].[LogicalResourceId,ResourceType,ResourceStatus,PhysicalResourceId]' \
  --output table

Logical ID	Resource Type	Status	Physical ID
LabVPC	AWS::EC2::VPC	CREATE_COMPLETE	vpc-0bdfe206b49918e46
LabInternetGateway	AWS::EC2::InternetGateway	CREATE_COMPLETE	igw-001ee7239d384ade4
AttachGateway	AWS::EC2::VPCGatewayAttachment	CREATE_COMPLETE	IGW\|vpc-0bdfe206b49918e46
PrivateSubnet	AWS::EC2::Subnet	CREATE_COMPLETE	subnet-0c7024e01b930fc87
PrivateRouteTable	AWS::EC2::RouteTable	CREATE_COMPLETE	rtb-0c0175d2675c9e01f
PrivateSubnetRouteTableAssociation	AWS::EC2::SubnetRouteTableAssociation	CREATE_COMPLETE	rtbassoc-0d8242c4721abdcaa
WebServerSecurityGroup	AWS::EC2::SecurityGroup	CREATE_COMPLETE	sg-07bcc6de74a74e783
PrivateEC2Instance	AWS::EC2::Instance	CREATE_COMPLETE	i-08597d72c3f7e54a6

3.2 — Inspect the EC2 instance

Filter by the instance tag and project only the fields needed to prove the private placement.

terminal CLI

aws ec2 describe-instances \
  --filters "Name=tag:Name,Values=PrivateEC2Instance" \
  --query 'Reservations[*].Instances[*].[InstanceId,InstanceType,SubnetId,PublicIpAddress,State.Name]' \
  --output table

InstanceId	InstanceType	SubnetId	PublicIpAddress	State
i-08597d72c3f7e54a6	t3.micro	subnet-0c7024e01b930fc87	None	running

Challenge satisfied. PublicIpAddress: None confirms the instance launched without a public IP. The subnet ID matches the one created by the stack, and the state is running — the template delivered a working, private EC2 in a single deploy.

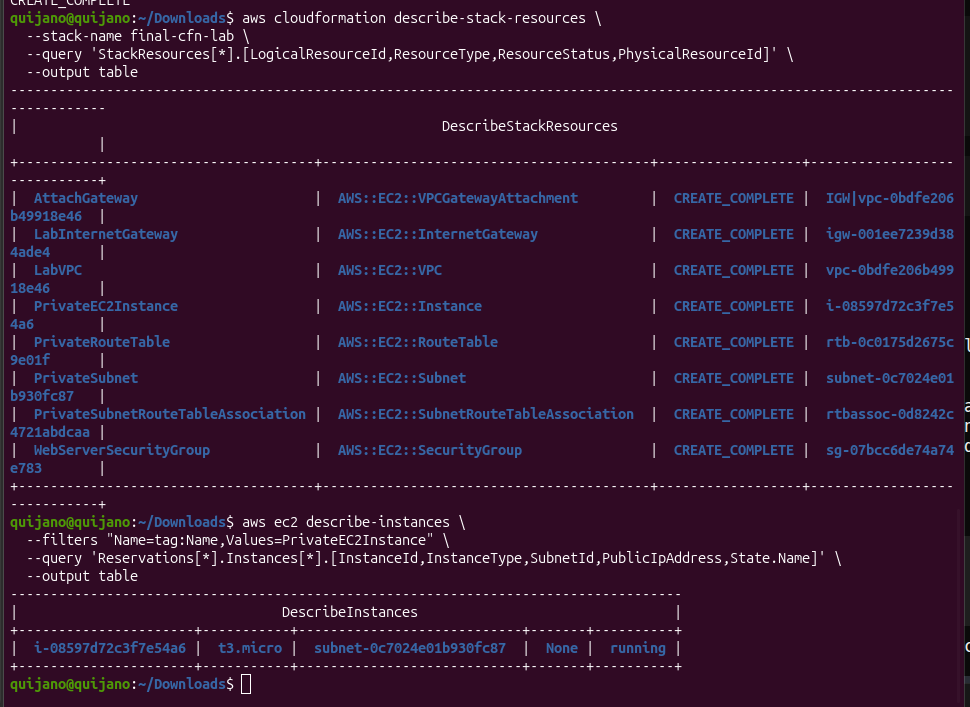

Terminal output: describe-stack-resources and describe-instances showing all 8 resources CREATE_COMPLETE and the EC2 with PublicIpAddress None — Terminal evidence: both queries side by side — the 8 stack resources and the private EC2 with PublicIpAddress = None.

Key Learnings

What Was Actually Learned

✓

How to declare an entire VPC + EC2 stack in a single CloudFormation YAML and deploy it from the CLI.

✓

The private subnet property comes from the route table, not the IGW's presence.

✓

Using AWS::SSM::Parameter::Value<AWS::EC2::Image::Id> to dynamically resolve the latest AMI.

✓

Using --query with JMESPath and --output table to project specific columns from AWS API responses.

✓

The wait subcommand turns asynchronous stack creation into a blocking, scriptable operation.

Technical Conclusion

The challenge had no step-by-step guide — only a list of required components and one constraint. Writing one YAML template that produces the entire infrastructure, then driving the deploy from the CLI, demonstrates the actual Infrastructure as Code mindset: describe the desired state once, let CloudFormation resolve the dependency graph, and verify with queries instead of console clicks.

The most useful nuance was realizing that an IGW attached to a VPC is harmless on its own. Subnets become public only when their route table points 0.0.0.0/0 at the gateway — a single missing route is the difference between a private workload and a publicly reachable one.
