Troubleshoot CloudFormation Deployments

A failing create-stack driven by a one-character typo in a userdata script. The stack rolls back, the symptom hides on the EC2 instance, and the fix only becomes visible after re-running with --on-failure DO_NOTHING and reading cloud-init logs. The lab also covers drift detection and a delete-stack that fails by design when an S3 bucket is not empty.

Lab Summary

Four tasks: practice JMESPath queries against JSON, troubleshoot a broken stack, detect configuration drift after a manual change, and observe how CloudFormation protects an S3 bucket with objects from being deleted.

Task 1 — JMESPath

Query JSON structures in the browser-based playground. The same syntax is used in every --query parameter of the AWS CLI for the rest of the lab.

Task 2 — Troubleshoot a failed deploy

First create-stack fails with WaitCondition timed out. Retry with --on-failure DO_NOTHING, SSH to the web server, and find the real cause in the userdata script: yum install -y http instead of httpd.

Tasks 3 & 4 — Drift & Delete

Manually edit the SG (port 22 to My IP) and upload a file to the bucket. detect-stack-drift reports the SG as MODIFIED, but the bucket stays IN_SYNC. delete-stack then fails because the bucket is no longer empty.

Task 1 — JMESPath in the Browser

JMESPath is the query language behind every AWS CLI --query parameter. The playground at jmespath.org lets you test expressions against JSON documents directly. Two documents were used: a desserts sample (provided by the lab) and the output of describe-stack-resources.

01

Query reference

The lab walks through six expressions. The last two are the most useful because they are the same patterns repeated in every --query later on: filter by attribute, then project a single field.

JMESPath expression Result
desserts[1].ingredients Array of ingredients for the second dessert.
desserts[?calories > `300`] Only desserts whose calories exceed 300.
desserts[?calories > `300`].name Same filter, projecting only name.
StackResources[*].LogicalResourceId List of every logical ID in the stack.
StackResources[?ResourceType == 'AWS::EC2::Instance'] Full record of the EC2 instance entry inside the stack.
StackResources[?ResourceType == 'AWS::EC2::Instance'].LogicalResourceId ["CliHostInstance"] — the answer to the lab's bonus question.

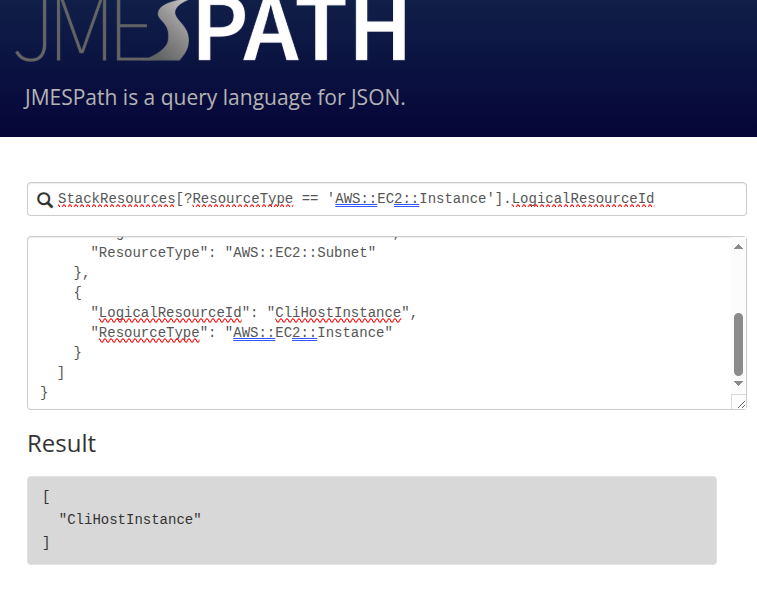

JMESPath playground showing the filter-and-project query returning CliHostInstance
JMESPath playground: filter StackResources by ResourceType and project LogicalResourceId → ["CliHostInstance"]
Pattern that matters: list[?attr == 'value'].field — filter then project. Every interesting --query in the rest of the lab is a variant of this.

Task 2 — Troubleshoot a Failed create-stack

The core of the lab. Standard CloudFormation pattern: stack starts, most resources succeed, then everything rolls back. The error message points at WaitCondition, but that's the symptom — not the cause.

Symptom

Stack rolls back

After ~3 min, resources start being deleted. Status: CREATE_FAILED → ROLLBACK_COMPLETE.

Diagnose

Filter the events

describe-stack-events with a JMESPath filter for CREATE_FAILED. Reason: WaitCondition timed out. Received 0 conditions when expecting 1.

Isolate

Retry without rollback

Re-run create-stack with --on-failure DO_NOTHING so the EC2 instance survives the failure and is available for inspection.

Root cause

Typo in userdata

SSH to the web server. cat part-001 shows yum install -y http — should be httpd. The shebang #!/bin/bash -ex aborts the script on that line, so the signal to cfn-signal never runs.

Fix

Edit & redeploy

Patch template1.yaml (http → httpd), delete-stack, create-stack again. All resources CREATE_COMPLETE; the web page loads.

2.1

First create-stack — failure visible mid-flight

  • SSH to the CLI Host (provided EC2 inside VPC2) using the Vocareum-supplied PEM key.
  • Launched the stack with the broken template:
aws cloudformation create-stack \
  --stack-name myStack \
  --template-body file://template1.yaml \
  --capabilities CAPABILITY_NAMED_IAM \
  --parameters ParameterKey=KeyName,ParameterValue=vockey
  • Monitored resource progress with watch -n 5 -d for live refresh:
watch -n 5 -d \
  aws cloudformation describe-stack-resources \
  --stack-name myStack \
  --query 'StackResources[*].[ResourceType,ResourceStatus]' \
  --output table
  • 10 of 11 resources reached CREATE_COMPLETE; the WaitCondition stayed in CREATE_IN_PROGRESS until the 60-second timeout, then the whole stack started rolling back.

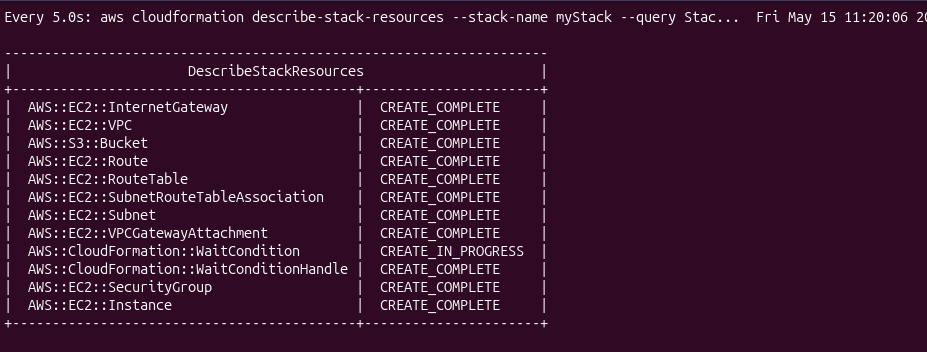

describe-stack-resources output via watch — 10 resources CREATE_COMPLETE, WaitCondition still CREATE_IN_PROGRESS
describe-stack-resources under watch at 11:20 — everything green except AWS::CloudFormation::WaitCondition. That single resource is what will fail.
2.2

Diagnosis — narrow the events to CREATE_FAILED

The full event list is unreadable. JMESPath filters it down to just the failing event so the ResourceStatusReason is visible at a glance:

aws cloudformation describe-stack-events \
  --stack-name myStack \
  --query "StackEvents[?ResourceStatus == 'CREATE_FAILED']"

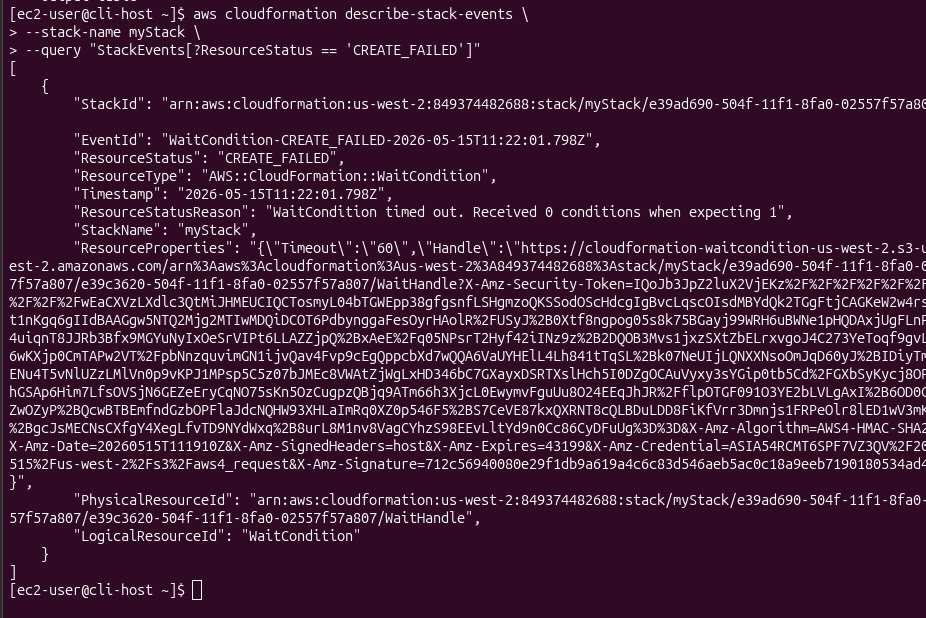

describe-stack-events output filtered to CREATE_FAILED showing WaitCondition timed out
Filtered output: "ResourceStatusReason": "WaitCondition timed out. Received 0 conditions when expecting 1". Useful but not actionable yet — the WaitCondition is the messenger.
Trap to avoid: reading the failure as a CloudFormation problem. It isn't. WaitCondition just waited for a signal that never arrived. The signal never arrived because something on the instance failed silently.
2.3

Isolation — preserve the instance with --on-failure DO_NOTHING

Default behaviour: CloudFormation deletes every resource on failure, including the EC2 instance whose logs would explain the problem. Solution: delete the failed stack first, then re-create with rollback disabled.

aws cloudformation delete-stack --stack-name myStack

aws cloudformation create-stack \
  --stack-name myStack \
  --template-body file://template1.yaml \
  --capabilities CAPABILITY_NAMED_IAM \
  --on-failure DO_NOTHING \
  --parameters ParameterKey=KeyName,ParameterValue=vockey

This time, when WaitCondition times out, the rest of the stack stays in CREATE_COMPLETE and the instance keeps running:

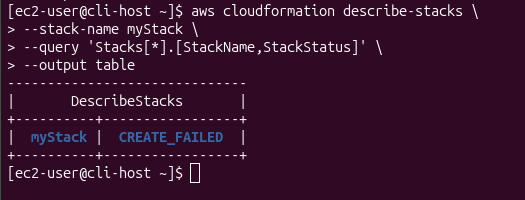

describe-stacks output showing myStack in CREATE_FAILED state without rollback
describe-stacks --output table: status is CREATE_FAILED, not ROLLBACK_COMPLETE. Resources are still alive — the web server can be inspected.
2.4

Root cause — typo in the userdata script

SSH from the CLI Host to the web server's private IP (same VPC, key already present) and read what cloud-init actually executed:

tail -50 /var/log/cloud-init-output.log
sudo cat /var/lib/cloud/instance/scripts/part-001

The userdata script, as rendered by CloudFormation on the instance:

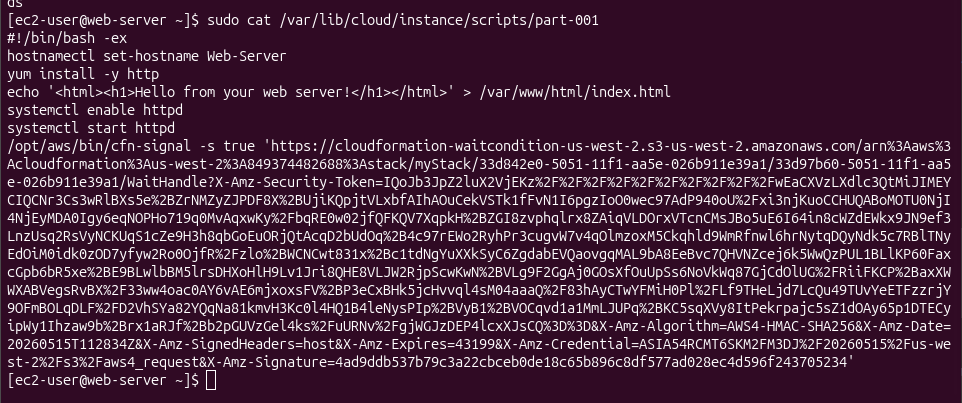

Userdata script part-001 showing the line yum install -y http
part-001 on the web server. Line 4: yum install -y http — the package is httpd. yum exits non-zero, and the shebang #!/bin/bash -ex aborts the rest of the script.
How the typo turns into a stack failure:
  1. yum install -y http → No package http available, exit code 1.
  2. #!/bin/bash -e (the -e flag) → script aborts on the first error.
  3. cfn-signal at the end of the script never executes.
  4. WaitCondition never receives the success signal → times out after 60 s.
  5. CloudFormation marks the stack CREATE_FAILED.
2.5

Fix & redeploy

  • Edited template1.yaml line ~128 in the userdata section: http → httpd.
  • delete-stack to clear the failed stack, then create-stack with the corrected template (left --on-failure DO_NOTHING in place — harmless when the deploy works).
  • All 11 resources reached CREATE_COMPLETE:

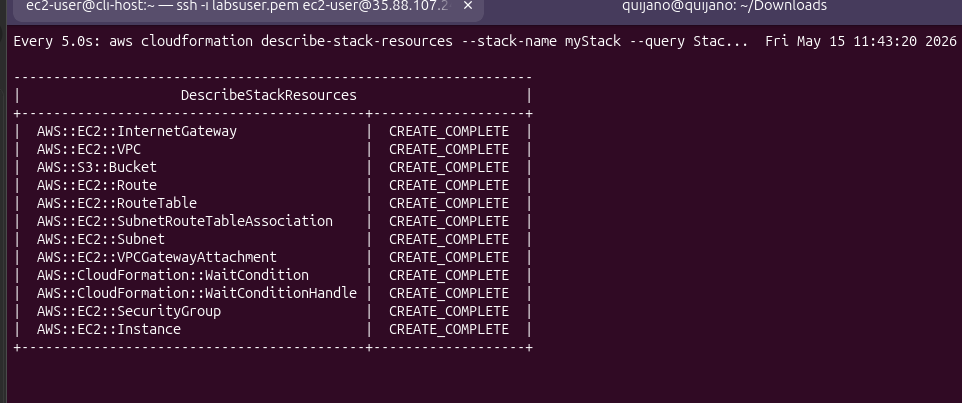

describe-stack-resources showing every resource at CREATE_COMPLETE after the fix
Post-fix at 11:43 — every resource CREATE_COMPLETE, including AWS::CloudFormation::WaitCondition. The web server signalled success.
  • Pulled the public IP from the stack Outputs and opened it in a browser:

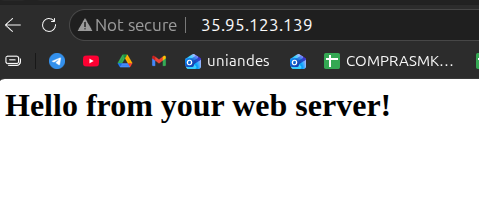

Browser showing Hello from your web server! served from the deployed instance
End-to-end verification at 35.95.123.139: "Hello from your web server!" served by httpd.

Task 3 — Manual Modifications and Drift Detection

Two manual changes (one to the SG, one to the S3 bucket), then ask CloudFormation if it notices. No screenshots were captured for this task — documented here as commands and observed results.

3.1

Manual changes outside CloudFormation

  • Security group: in the EC2 console, edited the inbound rule for port 22 from 0.0.0.0/0 to My IP.
  • S3 bucket: uploaded a small file named myfile to the bucket created by the stack.
3.2

Detect drift

# Start the drift check (returns a StackDriftDetectionId)
aws cloudformation detect-stack-drift --stack-name myStack

# Poll the detection status
aws cloudformation describe-stack-drift-detection-status \
  --stack-drift-detection-id <driftId>

# Get a readable per-resource drift table
aws cloudformation describe-stack-resources \
  --stack-name myStack \
  --query 'StackResources[*].[ResourceType,ResourceStatus,DriftInformation.StackResourceDriftStatus]' \
  --output table

# Show only resources that drifted, with PropertyDifferences
aws cloudformation describe-stack-resource-drifts \
  --stack-name myStack \
  --stack-resource-drift-status-filters MODIFIED

Observed:

  • AWS::EC2::SecurityGroup → MODIFIED. The PropertyDifferences output shows the CIDR changed from 0.0.0.0/0 to the lab's public IP.
  • AWS::S3::Bucket → IN_SYNC, despite the uploaded file.
  • Several other resources show NOT_CHECKED — drift detection has per-resource-type coverage gaps.
Drift only covers template properties. Uploading objects to a bucket does not register as drift — only changes to bucket configuration (e.g. versioning, ACL) would. This is the key conceptual point of Task 3.
3.3

update-stack does not heal drift

Re-running update-stack with the original template returns an error along the lines of No updates are to be performed. Drift has to be reconciled manually — either by reverting the manual change, or by updating the template to match the new desired state.

Task 4 — delete-stack Fails by Design

Standard cleanup attempt. CloudFormation deletes everything except the S3 bucket, because the bucket now contains myfile from Task 3.

4.1

Delete attempt and resulting state

aws cloudformation delete-stack --stack-name myStack

watch -n 5 -d \
  aws cloudformation describe-stack-resources \
  --stack-name myStack \
  --query 'StackResources[*].[ResourceType,ResourceStatus]' \
  --output table

Every resource progresses to DELETE_COMPLETE except one: AWS::S3::Bucket ends in DELETE_FAILED. The stack itself enters DELETE_FAILED rather than disappearing.

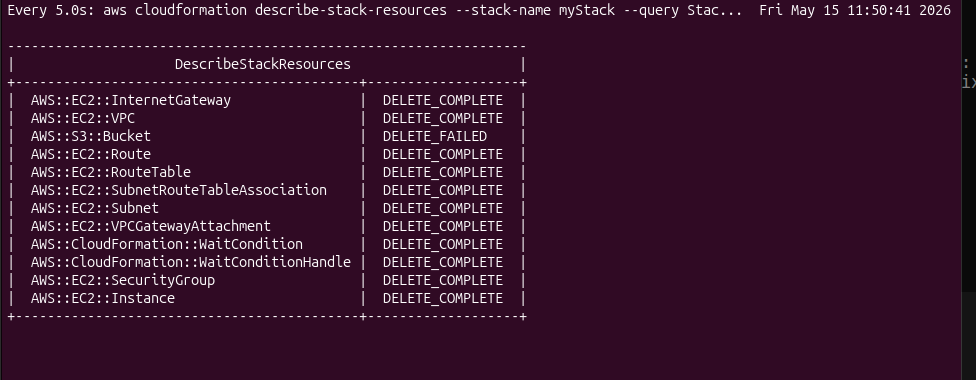

describe-stack-resources output: every resource DELETE_COMPLETE except S3 Bucket which is DELETE_FAILED
Post-delete at 11:50 — 10 resources DELETE_COMPLETE, AWS::S3::Bucket stuck at DELETE_FAILED. CloudFormation refuses to delete a non-empty bucket.
Why this is a feature, not a bug: S3 buckets can contain irreplaceable data. CloudFormation will not silently empty a bucket during a stack delete, so the DELETE action returns an error. This protects against accidental data loss.
4.2

Challenge — not completed

Honesty note. The optional Challenge section asked to delete the stack while retaining the S3 bucket and its object. This was not executed during the lab run; the report stops at the DELETE_FAILED screenshot above.

The intended path, kept here as a theoretical reference and not as evidence of work performed:

# Retry delete-stack, telling CloudFormation to skip the bucket
aws cloudformation delete-stack \
  --stack-name myStack \
  --retain-resources MyBucket

Notes from reading the guide:

  • --retain-resources takes the logical IDs from the template (in this lab the bucket's logical ID is MyBucket — confirmed via JMESPath in Task 1's pattern).
  • The guide hints at chaining commands — using the output of one (describe-stack-resources filtered to find the failed bucket's logical ID) as input to the next (delete-stack --retain-resources).
  • The bucket and its objects would survive the stack deletion and would have to be cleaned up manually afterwards if no longer needed.

Command Reference

The CloudFormation CLI calls used across the lab, grouped by intent.

deploy

Create & observe

  • aws cloudformation create-stack --stack-name myStack --template-body file://template1.yaml --capabilities CAPABILITY_NAMED_IAM --parameters ParameterKey=KeyName,ParameterValue=vockey
  • --on-failure DO_NOTHING — keep resources alive when the stack fails (essential for userdata troubleshooting).
  • watch -n 5 -d aws cloudformation describe-stack-resources … — refresh every 5 s, highlight diffs.
diag

Diagnose

  • aws cloudformation describe-stack-events --stack-name myStack --query "StackEvents[?ResourceStatus == 'CREATE_FAILED']"
  • aws cloudformation describe-stacks --stack-name myStack --output table
  • On the instance: tail -50 /var/log/cloud-init-output.log · sudo cat /var/lib/cloud/instance/scripts/part-001
drift

Detect drift

  • aws cloudformation detect-stack-drift --stack-name myStack
  • aws cloudformation describe-stack-drift-detection-status --stack-drift-detection-id <id>
  • aws cloudformation describe-stack-resource-drifts --stack-name myStack --stack-resource-drift-status-filters MODIFIED
  • aws cloudformation describe-stack-resources --query 'StackResources[*].[ResourceType,ResourceStatus,DriftInformation.StackResourceDriftStatus]' --output table
delete

Delete

  • aws cloudformation delete-stack --stack-name myStack
  • aws cloudformation delete-stack --stack-name myStack --retain-resources MyBucket — theoretical, not executed in this run.

Key Learnings

What was actually learned

✓
WaitCondition + #!/bin/bash -e form a fail-fast pair: any error in userdata stops the script and the stack fails loudly instead of silently producing a broken instance.
✓
--on-failure DO_NOTHING is the troubleshooting switch — without it, the instance whose logs explain the failure is deleted before it can be inspected.
✓
The real cause of a userdata failure lives in /var/log/cloud-init-output.log and /var/lib/cloud/instance/scripts/part-001 on the instance, not in CloudFormation events.
✓
JMESPath list[?attr == 'value'].field is the universal filter-and-project pattern for AWS CLI --query.
✓
Drift detection only sees template properties. Uploading objects to a bucket is invisible to drift; modifying SG rules is visible.
✓
update-stack does not reconcile drift — it has to be fixed manually, either in the template or by reverting the change.
✓
S3 buckets with objects block delete-stack by design. --retain-resources is the documented escape hatch (not exercised in this lab).

Technical conclusion

The lab's value is not the deployment — it's the failure. A one-character typo (http vs httpd) produces a generic CloudFormation symptom (WaitCondition timed out) that says nothing about the real problem. Solving it requires using CloudFormation's own escape hatches: --on-failure DO_NOTHING to preserve evidence, and describe-stack-events with JMESPath filters to isolate signal from noise.

The drift and delete tasks reinforce that CloudFormation is a state machine over template properties, not a full inventory tool. It does not track object contents, and it refuses destructive operations on stateful resources — which is correct behaviour, not a bug.
