Lab Report: Troubleshooting a VPC

Lab Summary

Two VPCs were pre-built with broken networking. The job was to make the cafe web server reachable from the public internet, fix SSH access, and then explain what happened using flow logs.

Issue #1 — Web timeout

The public subnet route table was missing the default route to the Internet Gateway. Traffic could enter the VPC but had no way out. Fixed with aws ec2 create-route.

Issue #2 — SSH blocked

The Security Group allowed port 22, but a Network ACL ingress rule (number 40) was denying SSH at the subnet level. Removed with delete-network-acl-entry.

Evidence — 2229 REJECTs

VPC Flow Logs captured every blocked packet while troubleshooting. Counted 2229 REJECT records across the captured window with a single grep | wc -l pipeline.

Environment

VPC1 (10.0.0.0/16) ───── IGW (broken: no route) │ └── Public Subnet │ ├── Cafe Web Server (port 80 open, NACL ingress #40 = DENY) └── CLI Host (used to drive aws-cli + analysis) Flow Logs ──► S3 bucket: flowlog###### (capture: ALL)

Enabling VPC Flow Logs

Created an S3 bucket and a flow log on VPC1 capturing ALL traffic (accepted and rejected) before starting the troubleshooting. This is what made the forensic analysis at the end possible.

Bucket + flow log creation

Created a uniquely-named S3 bucket in us-west-2 to receive the log files. The lab required suffixing with six random digits to avoid global name collisions.
Resolved VPC1's ID with a tag-filtered describe-vpcs query, then attached a flow log targeting that VPC with --traffic-type ALL and --log-destination-type s3.
Confirmed status ACTIVE via describe-flow-logs.

# 1. S3 bucket for flow log delivery
aws s3api create-bucket \
  --bucket flowlog###### \
  --region us-west-2 \
  --create-bucket-configuration LocationConstraint=us-west-2

# 2. Resolve VPC1 ID by tag
aws ec2 describe-vpcs \
  --query 'Vpcs[*].[VpcId,Tags[?Key==`Name`].Value,CidrBlock]' \
  --filters "Name=tag:Name,Values='VPC1'"

# 3. Create the flow log (ALL traffic, S3 destination)
aws ec2 create-flow-logs \
  --resource-type VPC \
  --resource-ids <vpc-id> \
  --traffic-type ALL \
  --log-destination-type s3 \
  --log-destination arn:aws:s3:::flowlog######

# 4. Verify status = ACTIVE
aws ec2 describe-flow-logs

Gotcha: create-flow-logs sometimes prints an "Unsuccessful" entry in its JSON output. The lab guide explicitly says to ignore it — the flow log still gets created. describe-flow-logs is the source of truth, not the create response.

Troubleshooting Two Broken Paths

The lab forbade the AWS Console for diagnosis — everything had to be done with aws-cli. This is the part of the lab worth keeping: the diagnostic order (SG → Route Table → NACL) and the exact CLI calls that confirm or rule out each layer.

The web server is up but the page never loads

Pasting WebServerIP in the browser results in a timeout. The instance is reported as running by describe-instances, so the problem has to be at the network layer.

Síntoma

Browser timeout on http://<WebServerIP>. No response, no connection refused — pure black hole.

Diagnóstico

nmap shows no open ports from the CLI Host. SG permits 80/22. describe-route-tables on the public subnet shows only the local VPC route (10.0.0.0/16). No 0.0.0.0/0 entry.

Causa raíz

The public route table is missing the default route to the Internet Gateway. The subnet is "public" by name but not by configuration.

Fix

Add a route for 0.0.0.0/0 targeting the VPC's IGW with aws ec2 create-route. Web responds immediately after.

# Install nmap on the CLI Host and probe the web server
sudo yum install -y nmap
nmap <WebServerIP>

# Inspect the Security Group attached to the web server
aws ec2 describe-security-groups --group-ids 'WebServerSgId'

# Inspect the route table associated with the public subnet
aws ec2 describe-route-tables \
  --route-table-ids 'VPC1PubRouteTableId' \
  --filter "Name=association.subnet-id,Values='VPC1PubSubnetID'"

# Fix — add the missing default route to the IGW
aws ec2 create-route \
  --route-table-id 'VPC1PubRouteTableId' \
  --gateway-id 'VPC1GatewayId' \
  --destination-cidr-block '0.0.0.0/0'

Note on evidence: there is no screenshot of the browser displaying "Hello From Your Web Server!" after the fix. The page was loaded successfully and the timeout disappeared, but the capture was not taken. The fix is documented through the CLI commands above and the absence of further timeouts.

SSH still fails — even though port 22 is allowed

EC2 Instance Connect to the Cafe Web Server returns "Failed to connect to your instance". The Security Group is correct, the route table is now correct, the instance is running. Only one layer left to check.

EC2 Instance Connect red banner: Failed to connect to your instance — EC2 Instance Connect: red banner reporting the SSH connection failure to the web server

Síntoma

EC2 Instance Connect: "Error establishing SSH connection to your instance." SG inbound allows 22, route table is now correct.

Diagnóstico

describe-network-acls on the public subnet shows an ingress rule with RuleNumber: 40 denying TCP traffic.

Causa raíz

NACLs are stateless and processed by rule number in ascending order. The DENY at #40 fires before any later ALLOW, killing SSH at the subnet edge.

Fix

Delete entry #40 with delete-network-acl-entry --ingress. The next SSH attempt succeeds and hostname returns web-server.

# Dump every NACL entry attached to the public subnet
aws ec2 describe-network-acls \
  --filter "Name=association.subnet-id,Values='VPC1PublicSubnetID'" \
  --query 'NetworkAcls[*].[NetworkAclId,Entries]'

# Fix — remove the offending ingress rule (rule-number 40)
aws ec2 delete-network-acl-entry \
  --network-acl-id 'acl-id' \
  --ingress \
  --rule-number 40

# Confirm by reconnecting via EC2 Instance Connect, then:
hostname
web-server

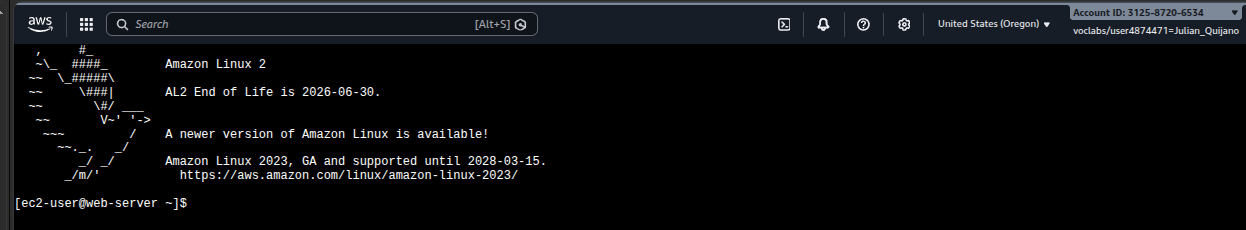

SSH terminal showing Amazon Linux 2 banner and ec2-user@web-server prompt — SSH after the NACL rule removal: Amazon Linux 2 banner + `[ec2-user@web-server ~]$` prompt confirms the fix landed on the correct instance

Layer order for VPC connectivity bugs: instance state → Security Group → Route Table / IGW / NAT → Network ACL. Stop at the first layer that fails the check. NACLs are last because they are silent and rarely the default suspect, but they will override any SG decision.

Analyzing the Captured Flow Logs

The flow log captured every packet rejected during the broken window. Downloaded the files from S3, decompressed them, and used grep to count and filter.

Download and decompress from S3

mkdir flowlogs && cd flowlogs

# Recursively copy every flow log object from the bucket
aws s3 cp s3://flowlog######/ . --recursive

# Files land under: AWSLogs/<AccountId>/vpcflowlogs/<region>/yyyy/mm/dd/
cd AWSLogs/<AccountID>/vpcflowlogs/us-west-2/yyyy/mm/dd/

# All files are gzipped — decompress in place
gunzip *.gz
ls

FMT

VPC Flow Log Record structure

The header row of each file documents the column order. The columns that actually mattered for this analysis:

Col	Field	Used for
4	srcaddr	Filtering by the analyst's home public IP (the source of the failed SSH attempts).
5	dstaddr	The web server's ENI private address.
7	dstport	Filtering to `22` to isolate SSH traffic.
10	start (Unix epoch)	Translatable with `date -d @<ts>`.
11	end (Unix epoch)	Same — to get a human-readable window.
13	action	`ACCEPT` or `REJECT` — the grep target.

CNT

Counting and filtering the rejected traffic

From the broadest count to the most specific filter, narrowing down to the exact failed SSH attempts:

# Total REJECT records captured during the broken window
grep -rn REJECT . | wc -l
2229

# Narrow to anything mentioning port 22 that was REJECTed
grep -rn 22 . | grep REJECT

# Final filter — only my home IP's failed SSH attempts
grep -rn 22 . | grep REJECT | grep <my-public-ip>

# Cross-check the ENI ID seen in the log matches the web server's NIC
aws ec2 describe-network-interfaces \
  --filters "Name=association.public-ip,Values='<WebServerIP>'" \
  --query 'NetworkInterfaces[*].[NetworkInterfaceId,Association.PublicIp]'

# Convert Unix timestamps to local time
date -d @1554496931
date

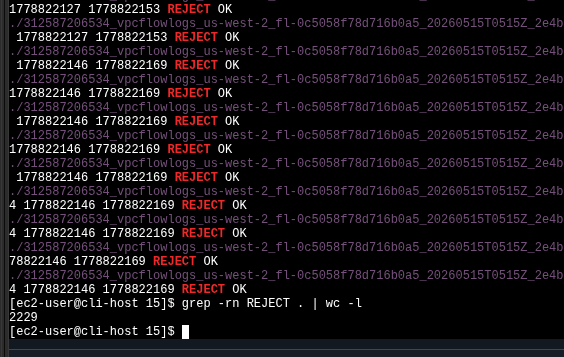

Terminal showing grep REJECT output ending with wc -l result of 2229 — CLI Host: `grep -rn REJECT . | wc -l` returns **2229** — every packet the broken NACL + missing route dropped during the lab

Why this matters: the same pipeline (grep | wc) gave a fast, account-wide audit of how much traffic was being silently dropped. In a real environment this scales poorly — the lab points to Amazon Athena as the next step: ingest the same S3 prefix as a table and run SQL over it.

Command Reference

Every AWS CLI / shell call used in the lab, in one block.

vpc

VPC and Flow Logs

aws ec2 describe-vpcs --filters "Name=tag:Name,Values='VPC1'" — find a VPC by tag.
aws ec2 create-flow-logs --resource-type VPC --traffic-type ALL ... — start capturing.
aws ec2 describe-flow-logs — check status (ACTIVE).

net

Networking diagnosis

aws ec2 describe-instances --filter "Name=ip-address,Values='<IP>'" — find the instance behind a public IP.
aws ec2 describe-security-groups --group-ids '<sg-id>' — inspect SG rules.
aws ec2 describe-route-tables --filter "Name=association.subnet-id,Values='<subnet-id>'" — see which route table a subnet uses and its routes.
aws ec2 describe-network-acls --filter "Name=association.subnet-id,Values='<subnet-id>'" — list every NACL rule on a subnet.
aws ec2 describe-network-interfaces --filters "Name=association.public-ip,Values='<IP>'" — map a public IP back to an ENI ID.

fix

Mutating fixes

aws ec2 create-route --route-table-id <rt> --gateway-id <igw> --destination-cidr-block '0.0.0.0/0' — add default route to the IGW.
aws ec2 delete-network-acl-entry --network-acl-id <acl> --ingress --rule-number 40 — drop a blocking NACL ingress rule.

log

Flow log shell pipeline

aws s3 cp s3://<bucket>/ . --recursive — pull every object from the bucket.
gunzip *.gz — decompress in place.
grep -rn REJECT . | wc -l — count dropped packets.
grep -rn 22 . | grep REJECT | grep <ip> — isolate failed SSH for a specific source.
date -d @<unix-ts> — convert epoch timestamps to local time.
sudo yum install -y nmap + nmap <ip> — quick reachability probe.

Key Learnings

What was actually learned

✓

The deterministic order for diagnosing VPC connectivity: instance state → SG → Route Table → NACL.

✓

Network ACLs are stateless and processed in ascending rule-number order; a low-numbered DENY overrides any later ALLOW.

✓

A subnet labeled "public" is not actually public until its route table has a 0.0.0.0/0 entry pointing at an Internet Gateway.

✓

VPC Flow Logs with --traffic-type ALL + S3 destination is a zero-instrumentation way to get a packet-level audit trail for any VPC.

✓

Flow log files are gzipped, partitioned by date under AWSLogs/<account>/vpcflowlogs/<region>/yyyy/mm/dd/ in S3, and queryable with plain grep for small windows.

Technical conclusion

The lab forces an honest CLI-only diagnostic on a deliberately broken VPC. The productive pattern is to stop guessing at the console and instead query each layer of the network stack with describe-* calls — the answer is always in one of them, and the symptom alone (timeout vs. connection refused vs. SSH banner failure) usually points to which layer is responsible.

Flow Logs close the loop: every assumption made during the fix can be retroactively confirmed by counting REJECTs in the bucket. For larger volumes the same data lands cleanly in Athena, turning the log into a SQL-queryable table — but for a 2229-line window, grep | wc -l is enough.
