What was configured
A Route 53 hosted zone with Failover routing policy on two A records, an HTTP health check on the primary instance, and a CloudWatch alarm that publishes to an SNS email topic when the primary goes down.
Lab Summary
Two identical café web servers were pre-deployed in us-west-2a and us-west-2b. The lab work consisted of layering Route 53 on top: one health check pointing at the primary instance, two failover A records, one CloudWatch alarm, and one SNS topic for email notifications.
What was tested
Resolved the public domain and confirmed it returned the primary IP. Then stopped
CafeInstance1 and verified that the health check flipped to Unhealthy,
the alarm fired, and the email was delivered.
Architecture
The lab guide referenced an external architecture diagram that did not survive the document conversion. The components and request flow are documented below instead.
| Component | Role | Location |
|---|---|---|
| CafeInstance1 | Primary web server (LAMP + café site). Target of the health check. | us-west-2a |
| CafeInstance2 | Secondary web server. Identical content; serves traffic only when the primary is unhealthy. | us-west-2b |
| Route 53 hosted zone | Holds the failover A records for www.<domain>. |
Global service |
| Route 53 health check | HTTP probe against the primary's public IP on path /cafe. |
Runs from us-east-1 (see note below) |
| CloudWatch alarm | Monitors HealthCheckStatus; publishes to SNS on ALARM. |
us-east-1 |
SNS topic (Primary-Website-Health) |
Fan-out to the subscribed email address. | us-east-1 |
Region note: the café instances live in
us-west-2, but the
Route 53 health check and its CloudWatch alarm are surfaced in us-east-1.
That is expected — Route 53 is a global service and its health-check metrics are
published in us-east-1. The ARNs visible in the SNS and alarm screenshots
reflect that.
Request flow: client →
www.<domain>.vocareum.training/cafe/ → Route 53 evaluates the health
check → returns the IP of CafeInstance1 (Primary) while healthy, or
falls back to CafeInstance2 (Secondary). On state change, CloudWatch
publishes to SNS, which emails the subscribed address.
Walkthrough
Four tasks: verify the pre-deployed instances, build the health check + alarm + SNS, create the failover A records, and trigger a real failover.
01
Verify the café instances are serving from distinct AZs
- Located the two pre-provisioned EC2 instances and captured their public IPs.

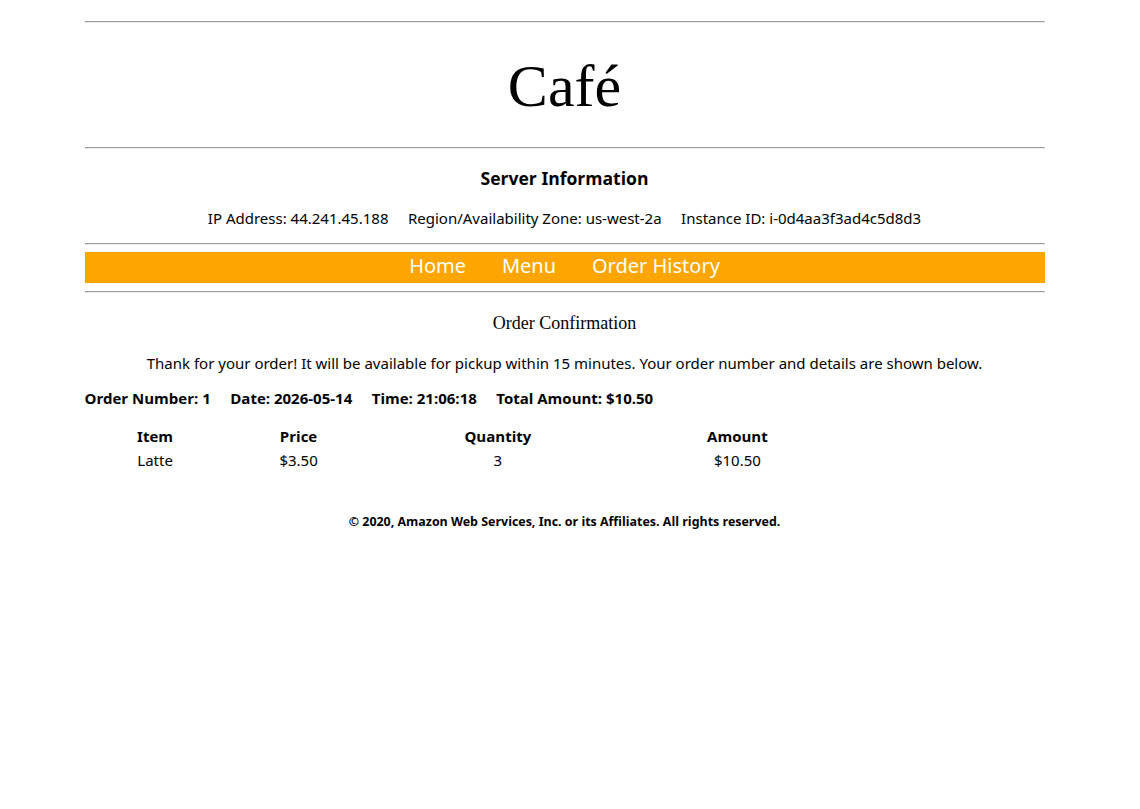

- Browsed each public IP at
/cafeand confirmed both render the same site. The Server Information block on each page reports the instance's IP, region, AZ, and instance ID — used to confirm the AZ split. - CafeInstance1 was confirmed running in
us-west-2awith IP44.241.45.188(this is the future primary).
02
Create the Route 53 health check, SNS topic, and CloudWatch alarm
- In Route 53 → Health checks, created
Primary-Website-Healthwith:- Endpoint type: IP address (the primary's public IPv4)
- Protocol: HTTP, path:
/cafe - Request interval: Fast (10 s)
- Failure threshold: 2
- On the same form, toggled Create alarm: Yes and asked it to
create a new SNS topic (

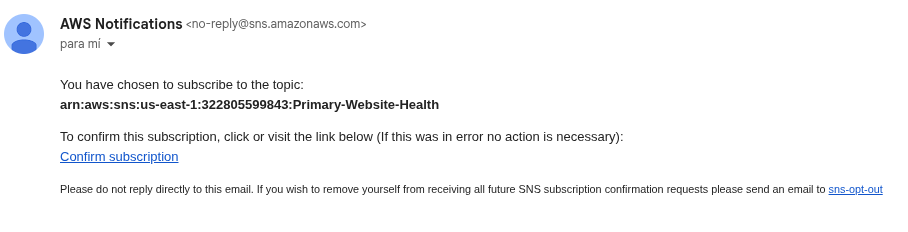

Primary-Website-Health) with the email recipient. - AWS sent the standard SNS confirmation email. Clicking Confirm subscription activated the endpoint — without it, SNS would never deliver alerts.
arn:aws:sns:us-east-1:…:Primary-Website-Health.

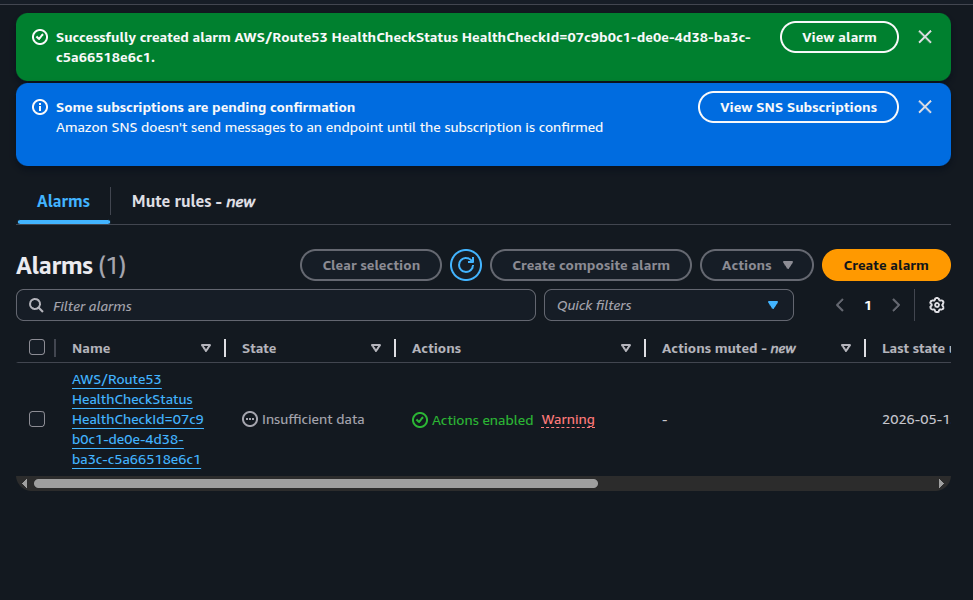

AWS/Route53 HealthCheckStatus created — initial state Insufficient data while it gathers metrics.
Why “Insufficient data” is normal at first: the
CloudWatch alarm needs a few datapoints before it can evaluate. Until then it
neither alerts nor reports OK — it just waits.
03
Create the two failover A records
- In the hosted zone, created two A records with the same name (
www) but distinct Record IDs — Route 53 requires unique IDs to tell failover siblings apart. - Both records use Routing policy: Failover. Only the primary references the health check; the secondary intentionally has no health check attached.
- TTL set to 15 s on both records so that resolvers re-query Route 53 quickly during the failover test. In production this would be a trade-off (more queries, higher cost) — fine for a lab.
| Field | Primary record | Secondary record |
|---|---|---|
| Record name | www |
www |
| Type | A | A |
| Value | Public IPv4 of CafeInstance1 (us-west-2a) | Public IPv4 of CafeInstance2 (us-west-2b) |
| TTL | 15 s |
15 s |
| Routing policy | Failover | Failover |
| Failover type | Primary | Secondary |
| Health check | Primary-Website-Health |
(none — by design) |
| Record ID | FailoverPrimary |
FailoverSecondary |

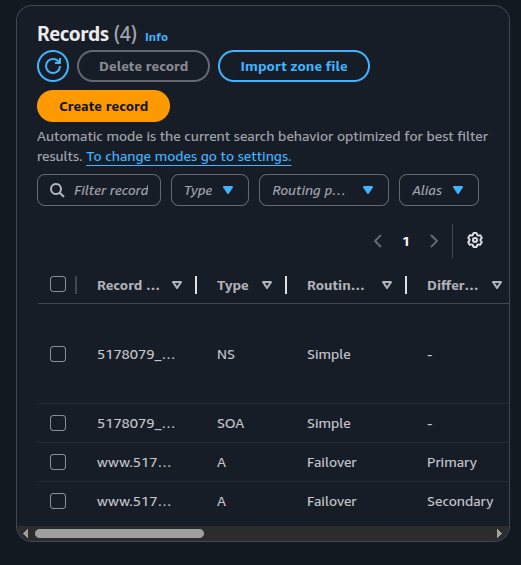

A · Failover records (Primary / Secondary).04
Test normal resolution, then force a failover
Part A — Normal state:
visited http://www.<hosted-zone>.vocareum.training/cafe/ in the
browser. The page resolved through Route 53 to the primary's IP, and the Server
Information block confirmed us-west-2a — i.e., the request is being
served by CafeInstance1.

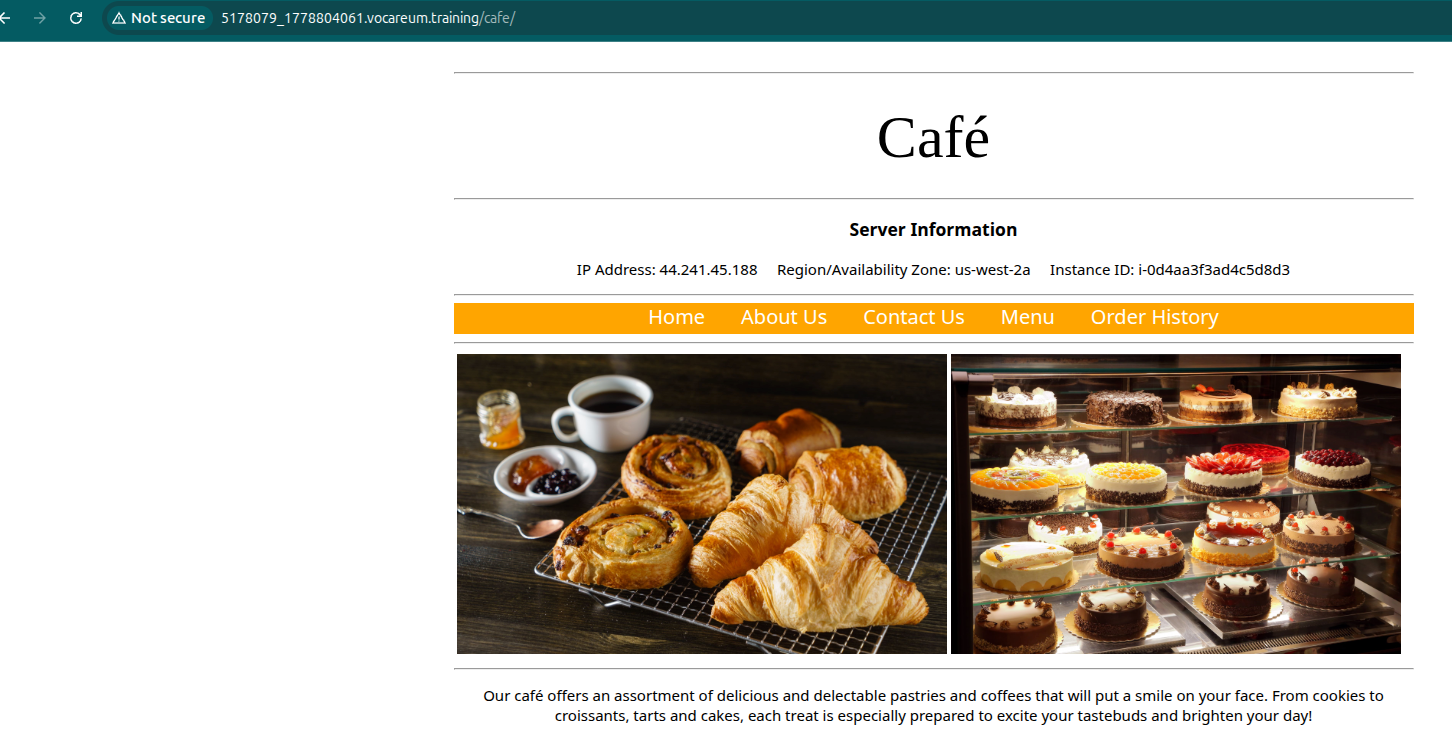

5178079_1778804061.vocareum.training/cafe/) resolving to the primary in us-west-2a.Part B — Forced failover:
stopped CafeInstance1 from the EC2 console. After two failed probes
(~20 s with Fast interval), the health check flipped to Unhealthy.
Refreshing the public URL after the TTL expired returned the page served from
us-west-2b — Route 53 had switched to the secondary record.
No own screenshot of the secondary serving the page or of the Unhealthy state
was captured during the lab.
Part C — Notification:
the CloudWatch alarm transitioned OK → ALARM and SNS published to the
email subscription. The delivered message includes the alarm ARN, the threshold
logic, and the timestamp of the transition.

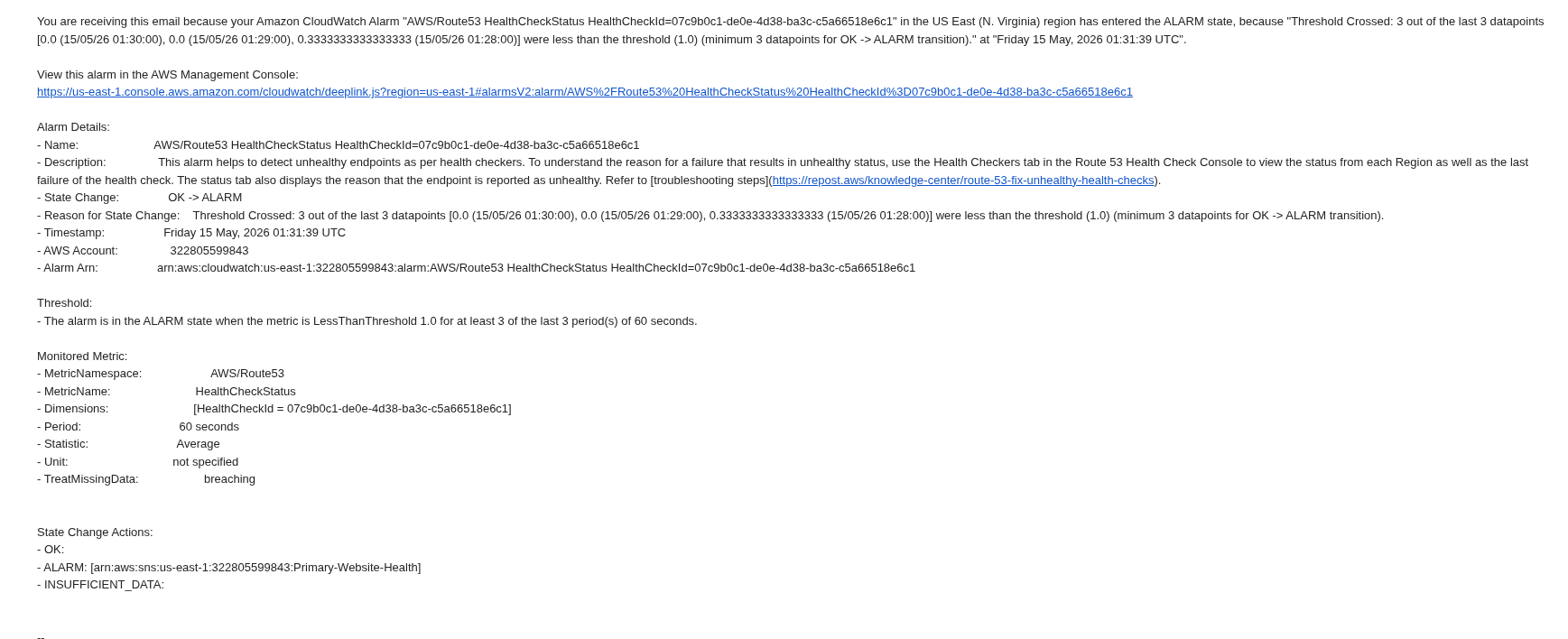

OK → ALARM, threshold crossed (3 of last 3 datapoints < 1.0), SNS topic Primary-Website-Health.
What this proves: the routing change (DNS) and the notification
(email) are independent paths — both triggered by the same metric, but neither
depends on the other. Route 53 would still fail over even if the alarm or SNS
were misconfigured, and vice-versa.
Key Learnings
What was actually learned
✓
Failover routing in Route 53 needs a health check attached only
to the Primary record. The Secondary stays dormant until the Primary reports
Unhealthy.
✓
Two failover records sharing a name must use distinct
Record IDs
(e.g. FailoverPrimary / FailoverSecondary) — that is
how Route 53 distinguishes them internally.✓
SNS + CloudWatch decouple the notification from the routing. The alarm is
observability; the failover happens regardless.
✓
Low TTL (
15 s) speeds up propagation during the test, but
charges more Route 53 queries. Tune it per workload.✓
Route 53 health checks and their CloudWatch metrics live in
us-east-1 even when the targets are in another region.
Operational takeaways
DNS-based failover is the cheapest multi-AZ fault tolerance pattern available — no load balancer, no listener, no rules. The trade-off is the TTL window: clients keep hitting the dead IP until their resolver re-queries.
For latency-sensitive workloads, an Application Load Balancer with cross-AZ targets is a better fit; for periodic / lower-traffic services, Route 53 failover is hard to beat on simplicity. The SNS email is good enough as a poor-man's incident channel — forwarding the same SNS topic to a Lambda or Slack webhook is the natural next step.
